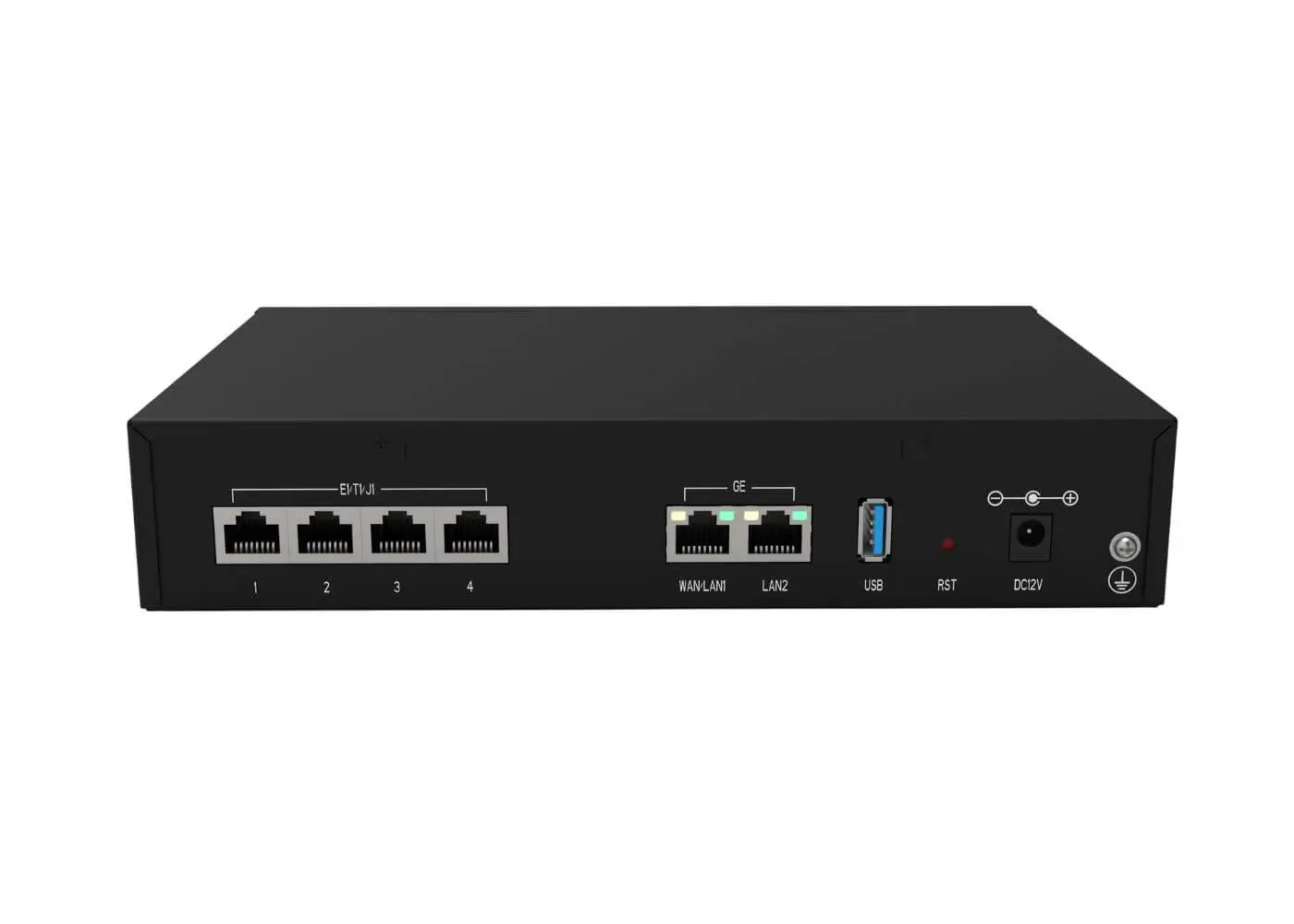

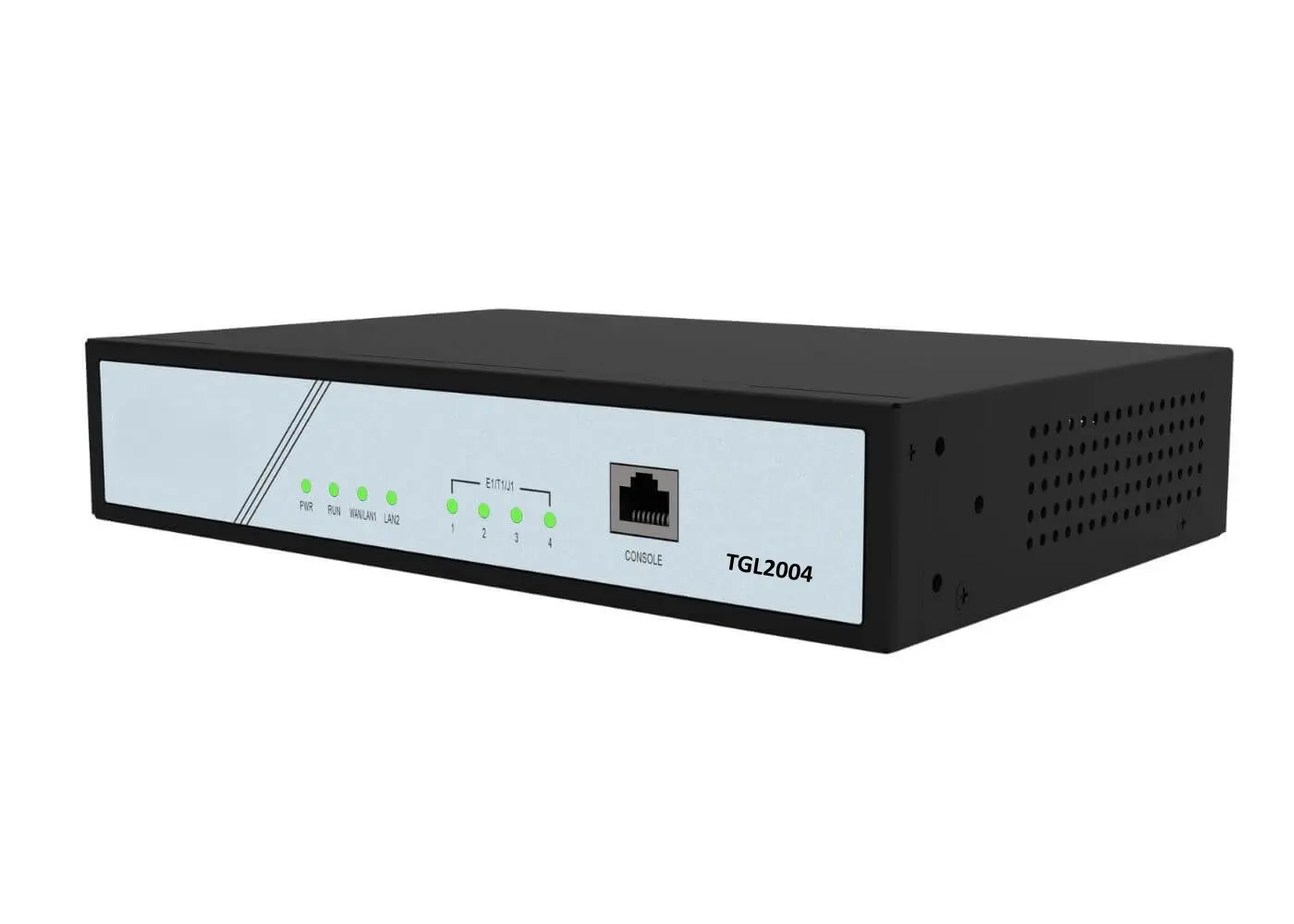

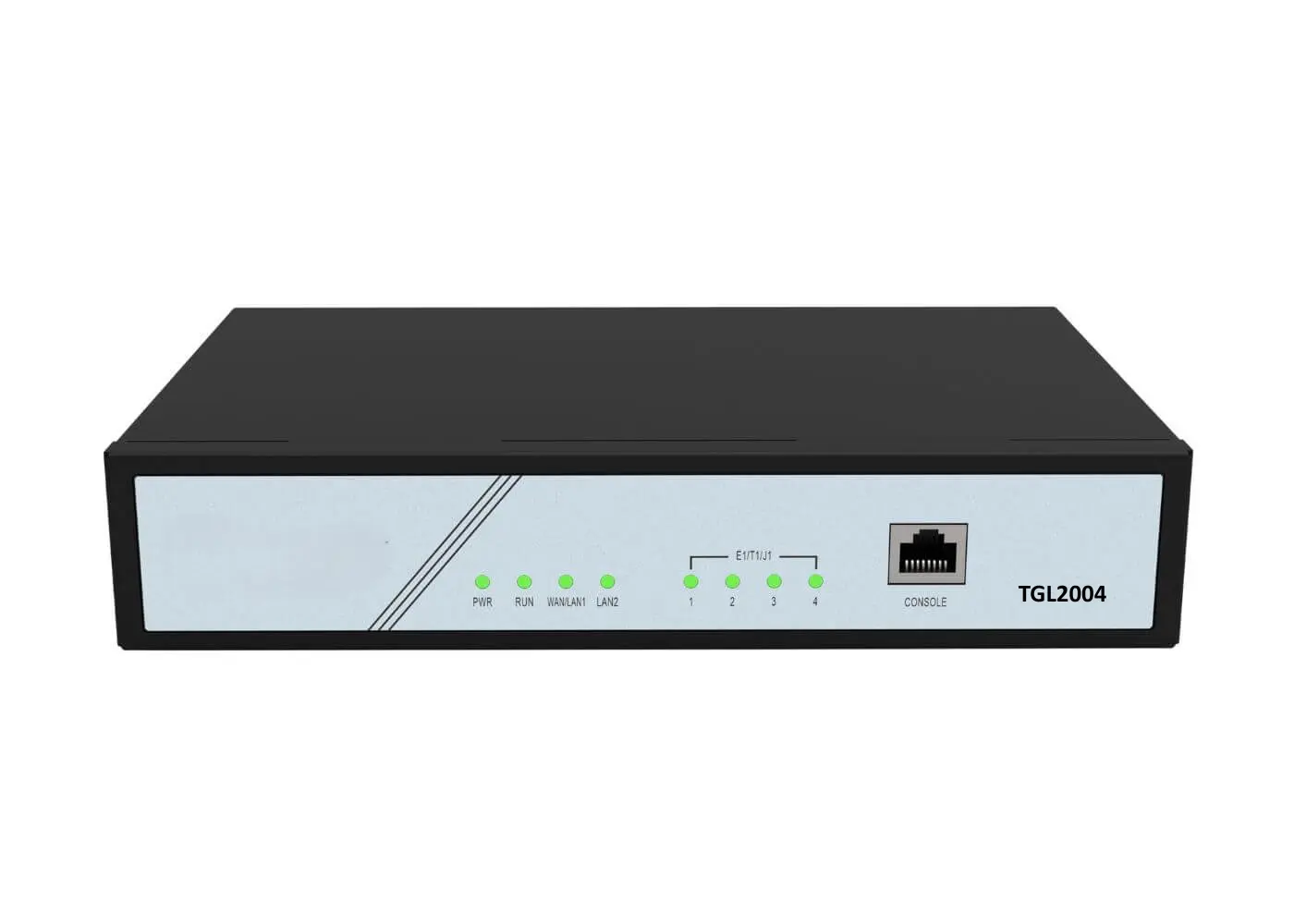

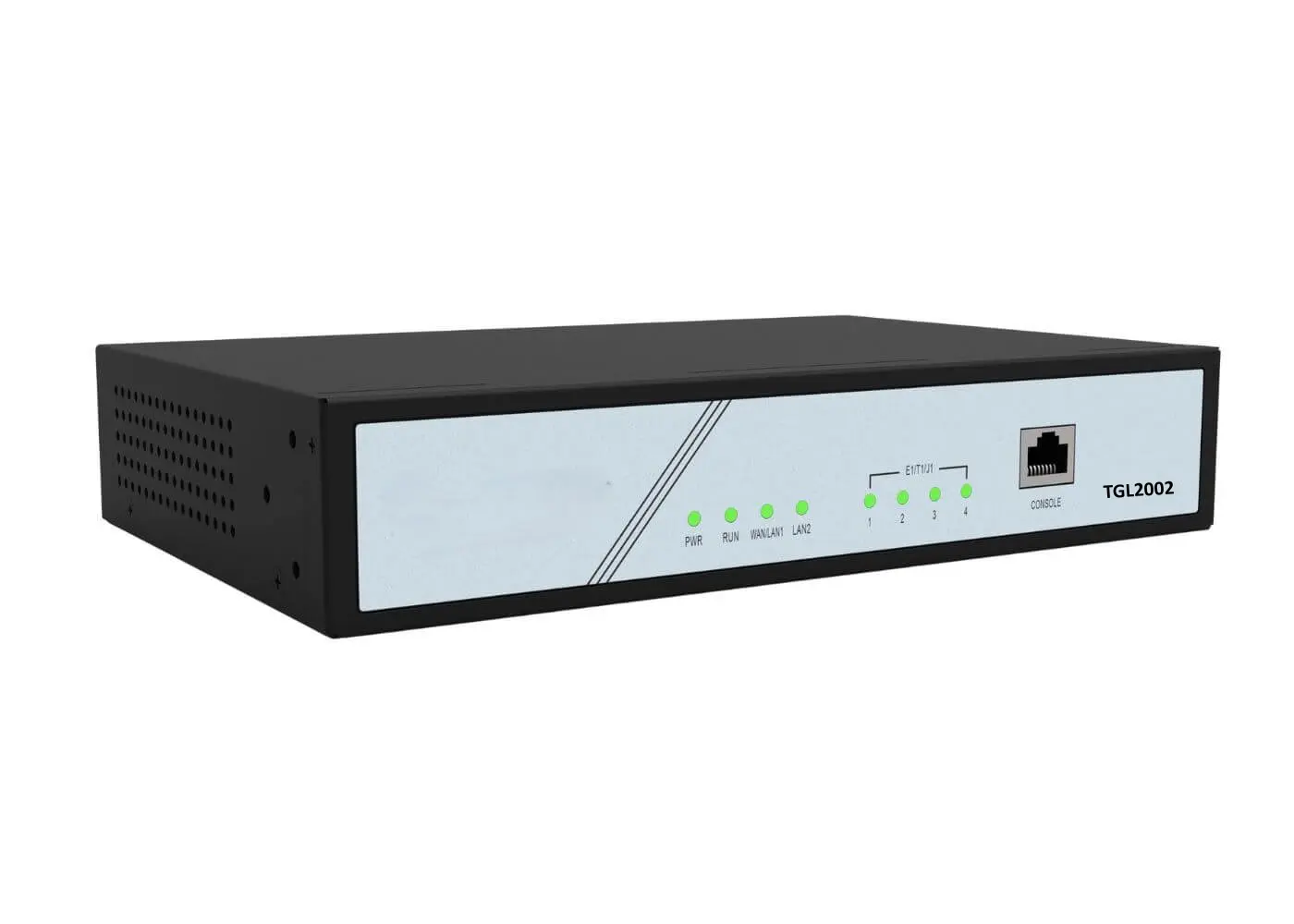

The world of digital communication is always changing. But businesses want to manage many calls at once. The 4 Port E1 and T1 Gateway from AKOM Technologies perform better. It fixes issues with complications of trunk lines and improves voice communication.
AKOM Technologies is a trusted company and you should give some thought to your needs. We have been one of the top VoIP gateway suppliers in India. For the last 10+ years, offering a wide range of choices and expertise. We are a leading brand in telecommunication services. You should consider our services and products. With a variety of options, we are one of the leading VoIP service and product providers in India. Depending on your requirements, we provide 1/2/4 Port E1 and T1 Gateway.
4 Port E1 and T1 Gateway support up to 120 concurrent calls with high channel capacity. Our device suits many telecom companies, businesses, and call centres. It supports high call volumes. Designed for seamless integration between traditional telephony systems and modern VoIP networks. Our device ensures smooth communication across various platforms. Whether connecting legacy PBX systems to low-cost VoIP services. Or transitioning from legacy to IP PBX. Analogue trunks are not a cost-saving option for companies. Providing a simplified and less expensive voice-to-voice data solution. The E1 and T1 devices work as bridges between many companies and organizations.
T1/E1 Gateway is an open source asterisk-based VoIP Gateway solution for operators and call centers. It is a converged media gateway product. This kind of gateway connects traditional telephone system to IP networks and integrates VoIP PBX with the ISDN seamlessly. With user friendly GUI, customers may easily setup their customized Gateway. Also secondary development can be completed through AMI (Asterisk Management Interface).
The DGW-100X(R) digital VoIP gateway supports 1/2/4 software-selectable T1/E1/PRI interface and supports up to 30/60/120 concurrent calls. The "R" means that the device supports redundant power supply.
Target Applications
Technical Specifications
| DGW-100X(R) E1/T1/PRI VoIP Gateway | ||||||
| Product Model | DGW-1001 | DGW-1001R | DGW-1002 | DGW-1002R | DGW-1004 | DGW-1004R |
| Power Supply | 1 | 2 | 1 | 2 | 1 | 2 |
| Ports | 1 | 2 | 4 | |||
| Concurrent Calls | 30 | 60 | 120 | |||
| Maximum power | 20W | |||||
| Operating temperature | 0℃~70℃ | |||||
| Storage temperature | -40℃~85℃ | |||||
System Features
SIP Features
Routing
Network Features
PDF Manual
