In this growing means of communication service. High-quality voice communication is a priority. By processing better voice call traffic. We know that connectivity also plays a major role. In growing a business, company or organisation. Telecommunication services help to grow the organisation. In a better and faster way with 16 Port VoLTE Gateway.
AKOM Technologies helps industries, businesses and organisations. With their 10+ years of trusted service. We deliver high-quality products. Our products solve all communication problems. Our device improves the communication workflow process. VoIP service's top goal is to give users a better experience. 16 Port VoLTE Gateway acts as a fast and better gateway. We provide the best service and performance. in the telecom service industry. Our device is an LTE band wireless cellular router device. Our device is an LTE band wireless cellular router. It has an 8 /16 Port VoLTE Gateway /32 integrated into it.
For growing industries and businesses. We provide cutting-edge technology for 16 Port VoLTE gateway devices. Our product works as a bridge for the simultaneous integration of GSM, WCDMA, and LTE networks. We provide various ports in our devices. By combining it with your current IP phone system. Our product provides the facility with a cost-saving service. They are smooth and effective. On a single device, it can handle up to 16 wireless-to-IP ports. It can also handle several wireless networks.

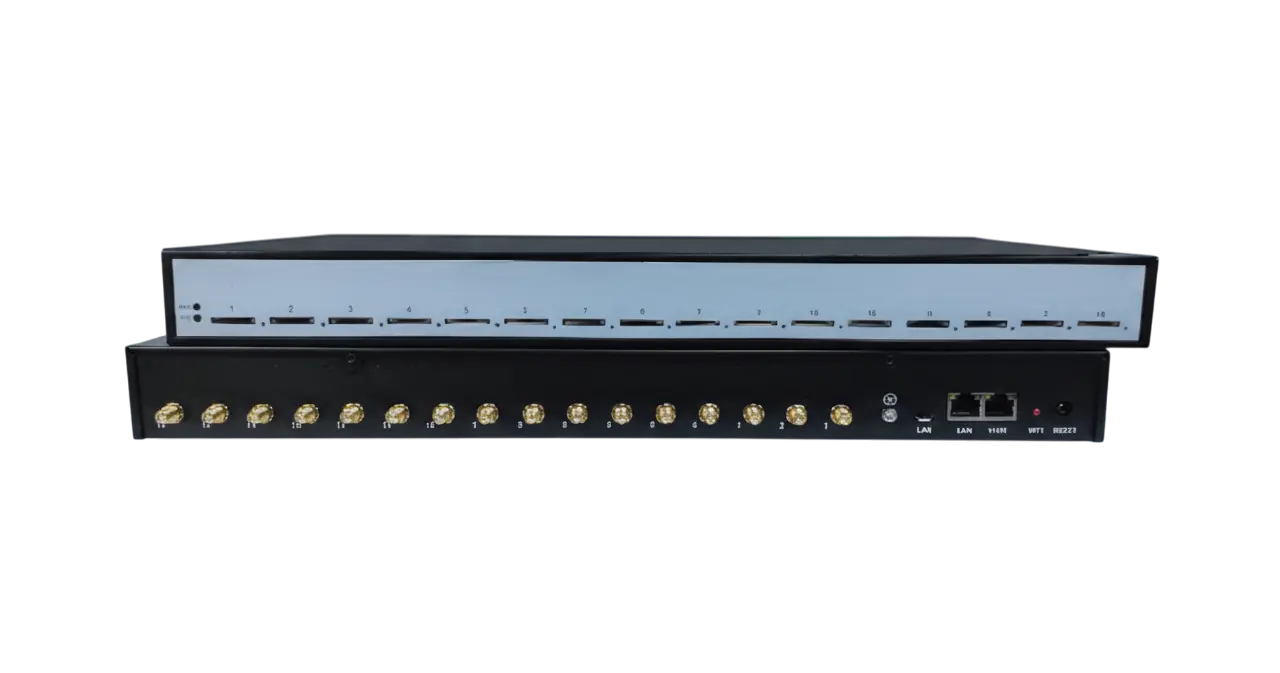

SWG-3016 series wireless gateways which can compatible with a series of modules(2G/3G/4G), enabling interconncetion between GSM / WCDMA / LTE network and VoIP network safely and efficiently. It can bring you excellent HD voice service with multiple codecs, including G.711U, G.711A, GSM, G.722, G.726, G.729 . Our products support SMS messages sending, receiving, group sending and SMS to E-mail. The SWG-3016 series gateways is perfect compatible with Asterisk, 3CX, FreePBX, FreeSWITCH SIP server and VOS VoIP system platform. It can provides users with more diverse telecommunications access methods and helps users reduce communication costs.
| SWG-3016 Series Wireless Gateway | |||||
| Product Name | SWG-3016L | ||||
| Module Type | WCDMA / LTE | ||||
| Module Number | 16 | ||||
| Channel Number | 16 | ||||
| Band | India LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz |
Europe/Middle East/Africa/Korea/Thailand North America |
Australia/New Zealand/Taiwan/Brazil LTE FDD: B1/B2/B3/B4/B5/ B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 |
||
| Weight(with packaging) | 2.84kg | 3.44kg | |||
| Power Consumption | 25W | ||||
| Dimension(bare) | 440mm*45mm*220mm | ||||
| Dimension(with packaging) | 510mm*90mm*350mm | ||||
| SIM Card | Hot-Swap | ||||
| LAN | 1*10/100M | ||||
| WAN | 1*10/100M | ||||
| USB Micro-B | 1(Supports USB Micro-B storage) | ||||
| Console | 1 | ||||
| Operaton Temperature | 0℃ ~ 45℃ | ||||
| Operaton Humidity Range | 10% ~ 90% | ||||
| Storage Temperature Range | -20℃ ~ 70℃ | ||||
VoIP Characters
Network
Management
System Features
