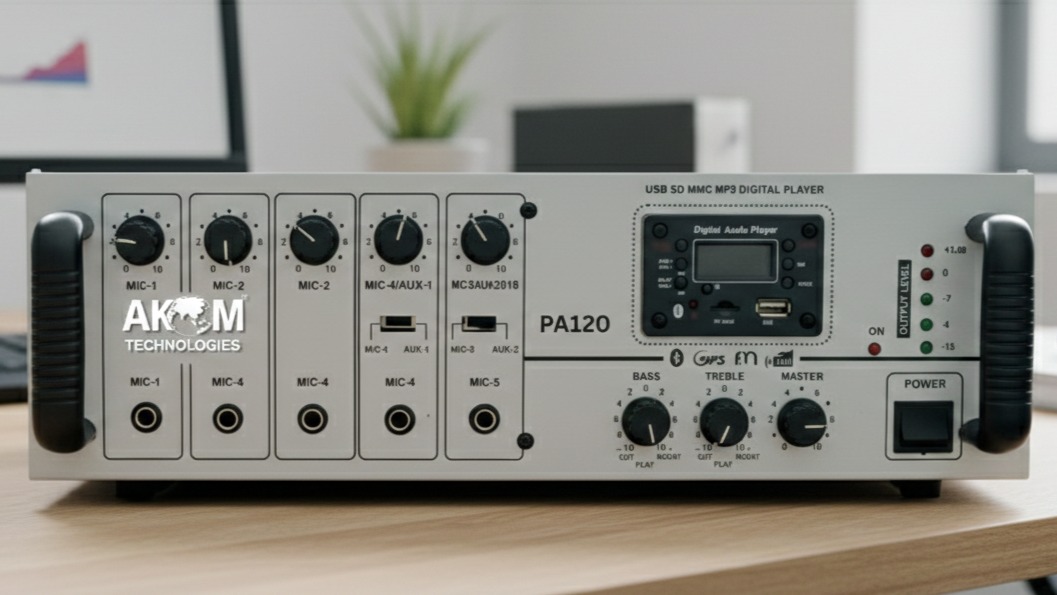

PA120 Hybrid IP Amplifier

Seamless Hybrid Integration - Unlike conventional PA amplifiers, AKOM Hybrid IP Amplifiers integrate directly with IP PBX, VoIP, and paging software through RJ45 LAN connectivity while also supporting analog microphone and line inputs.
Flexibility & Scalability - Available in 120W power variants , they are suitable for small offices, schools, hospitals, factories, malls, and large campuses.
Investment Protection & Future-Proof - Supports both low and high impedance speakers (2ohm, 4ohm, 70V & 100V), allowing reuse of existing speakers while enabling transition to IP-based paging systems.

Request a Quote

Specifications
The AKOM PA120 Hybrid IP Amplifier Series The AKOM Hybrid IP Amplifier Series is a next-generation Public Address (PA) solution that combines traditional analog amplification with modern IP (network-based) paging technology. These amplifiers support SIP/IP paging, analog audio inputs, and network control, making them ideal for new installations as well as upgrading existing PA systems without replacing speakers and wiring. They deliver reliable performance for voice announcements, emergency alerts, and background music across LAN-based networks and conventional PA infrastructure.

These amplifiers act as the central unit in a hybrid PA system by receiving SIP/IP audio streams from the network and converting them into amplified output for analog speaker lines.They also support local audio sources such as microphones and USB/TF card playback.
- Available Power Range: 120W, 250W, 500W & 1200W
- Network Connectivity: Ethernet RJ45 LAN Port
- Protocols Supported: SIP, RTP/RTSP, TCP/UDP, Multicast/Broadcast (IGMP), HTTP/HTTPS API, DHCP, DNS, NTP
- Universal Speaker Compatibility: 2Ω, 4Ω, 70V & 100V
- Multiple Audio Inputs: MIC (6.35mm), Line-In (RCA), USB/TF MP3 Player
- Scheduled Broadcasting: Automatic Announcements & Event-Based Paging
- API Integration: Third-Party Automation and Control Support
- Tone Control: 3-Band Equalizer (Bass, Mid, Treble)
- Display: Digital Display with LED Level (VU) Meter
- Protection: Overload, Short-Circuit & Thermal Protection with Circuit Breaker Reset
- Cooling System: Forced Air Cooling with Internal Fan
- Build: Heavy-Duty Metal Chassis, 19” Rack Mountable
- Origin: Made in India
Features
- 120W Audio Output Power – High-performance sound amplification
- Ethernet RJ45 LAN Port – Supports IP-based paging and network audio
- MIC and Line-In Audio Inputs – Flexible connectivity options
- Built-in USB & TF Card MP3 Player – Direct media playback support
- Supports 2Ω, 4Ω, 70V & 100V Speaker Outputs – Compatible with multiple speaker types
- Suitable for Background Music and Announcements – Ideal for commercial and public spaces
- Typical Applications:
- Factories & Warehouses
- Educational Institutions
- Hospitals & Clinics
- Shopping Malls & Office Buildings
- Airports & Railway Stations
- Smart Buildings & Campuses
- Emergency & Mass Notification Systems
- Integration with AKOM IP Paging Ecosystem:
- Seamless integration with SIP Horn, Wall & Ceiling Speakers
- Paging Gateways (SP20)
- Paging Software (PAS1000)
- IP Paging Console Phones (MC20)
- Complete Hybrid IP + Analog Paging Solution with centralized control, zone-based announcements, and emergency broadcasting
Download Brochure
PDF Manual
- AKOM PA120 Hybrid IP Amplifier Datasheet

PA120 Hybrid IP Amplifier

Network Diagram
