IP Ceiling Speaker

Specifications

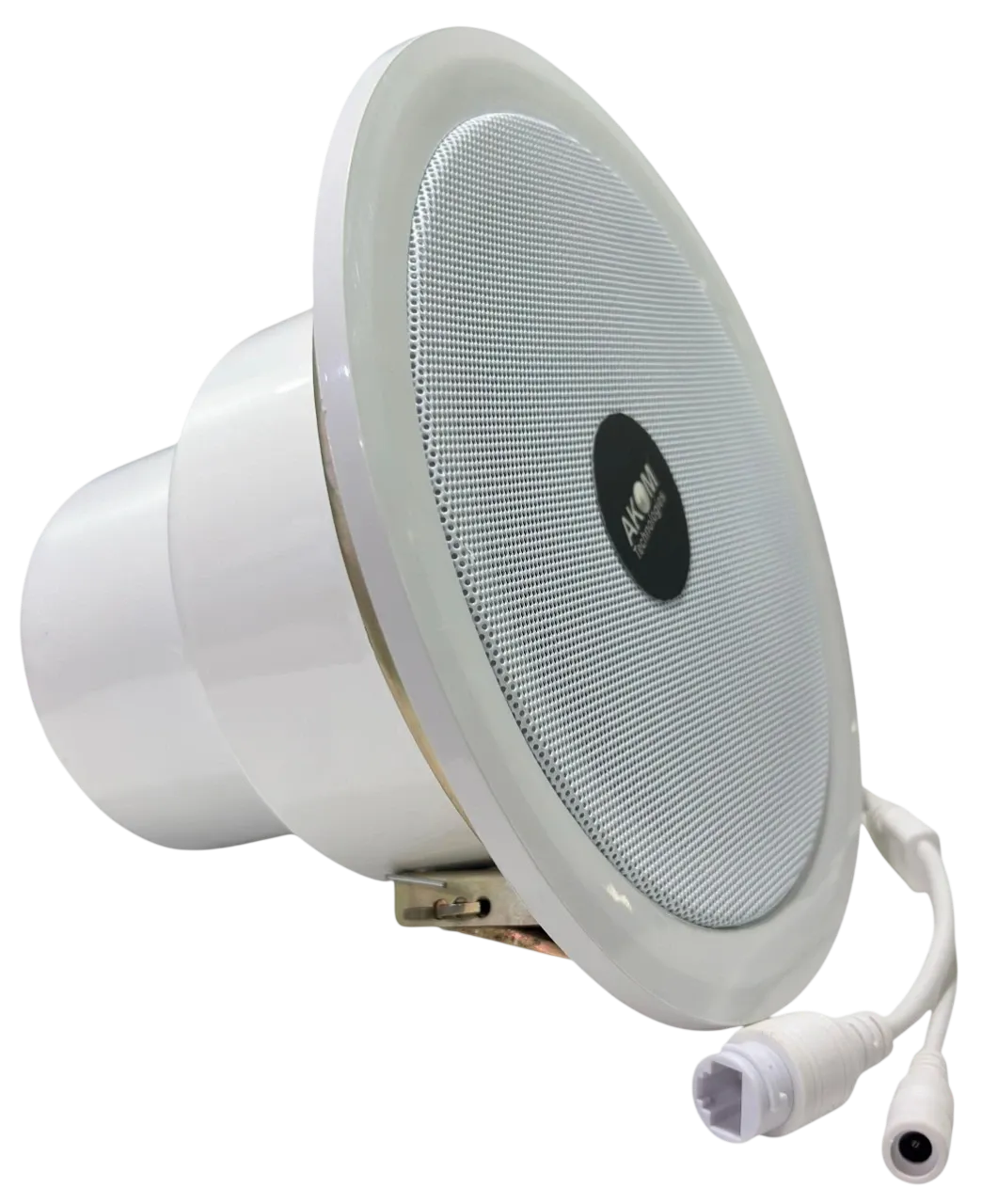

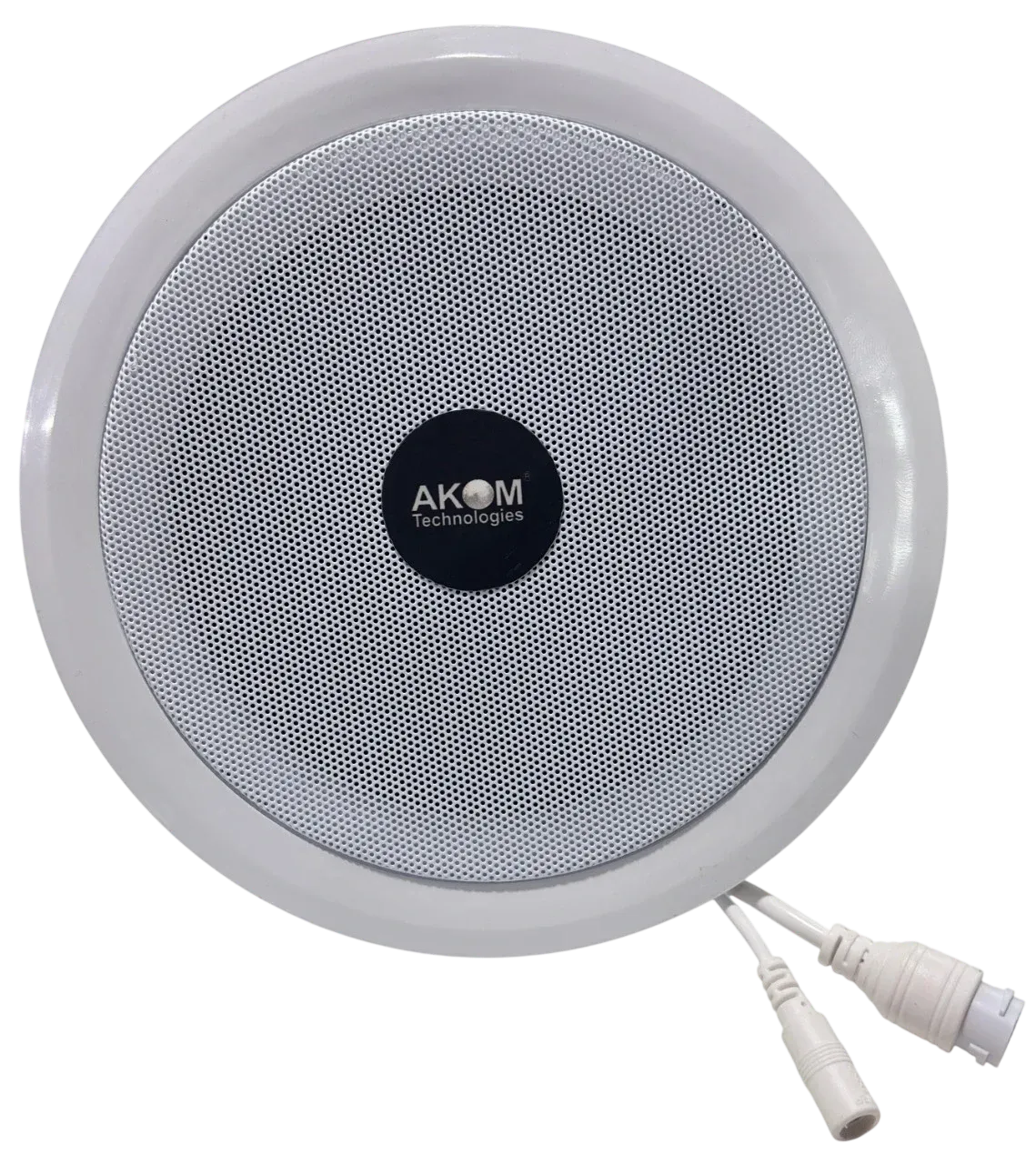

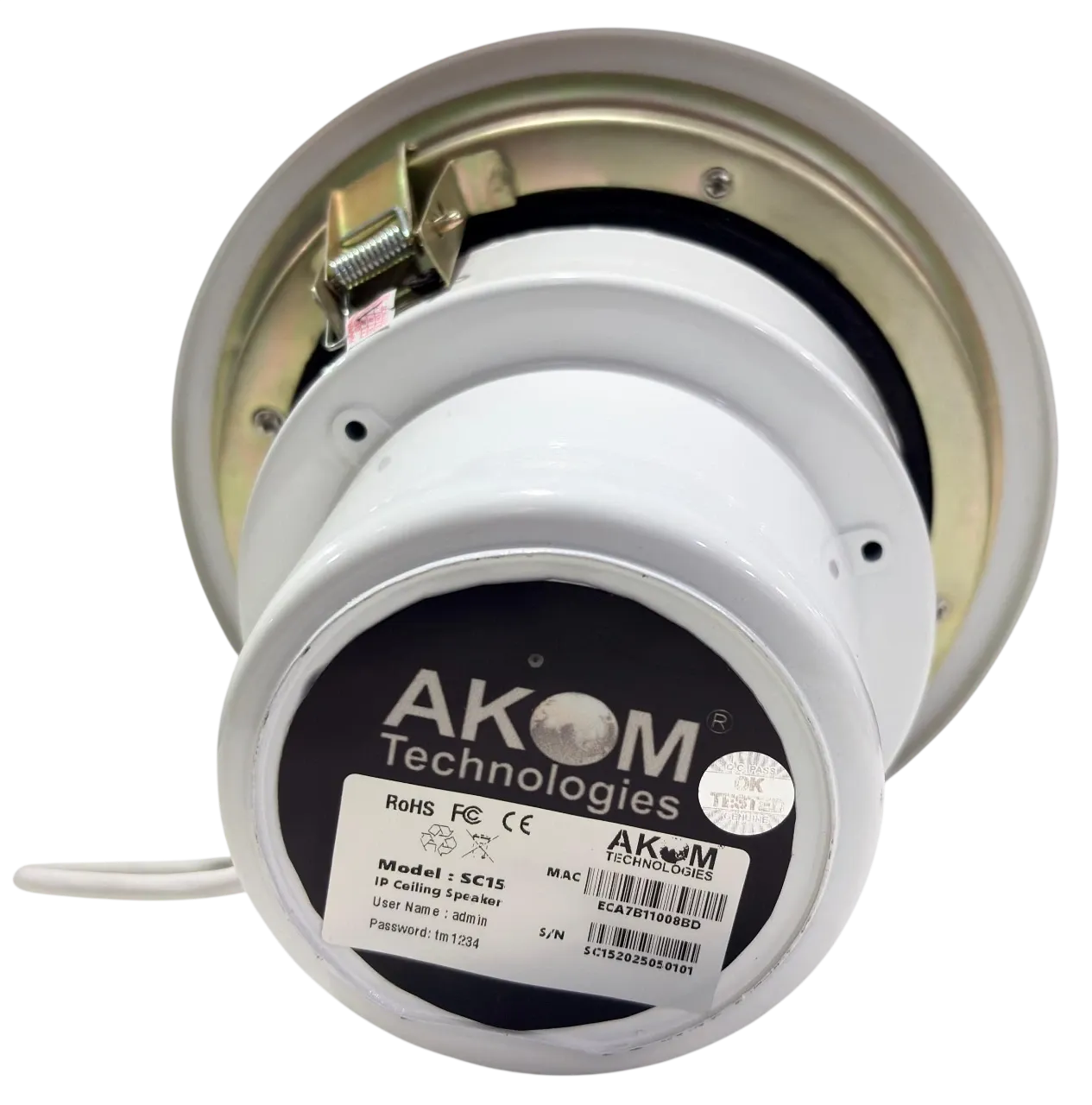

SC15 IP Ceiling Speaker is a compact yet powerful 15W IP ceiling speaker designed for high-definition audio in public address and emergency communication systems. It supports SIP, ONVIF, and HTTP API protocols, enabling seamless integration with various security and communication platforms. Inbuilt with two options adapter-powered and PoE-powered. Its durable IP55-rated design ensures reliable performance in both indoor and outdoor environments. Key features include alarm input for event-triggered alerts, pre-recorded message playback for automated announcements, and the 48K OPUS codec, which delivers crystal-clear, low-latency audio, making it ideal for schools, transport hubs, industrial sites and commercial facilities.

SC15 Specifications
Model	SC15
Max SIP Accounts	2
Function	Compatible with VoIP devices and ONVIF VMS; supports two-way communication, pre-recorded messages, scheduled playback, GPIO input, HTTP control
Supported Protocols	SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Network Interface	RJ45, 10BASE-T / 100BASE-TX
Audio Codec	OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
DTMF Support	In-band, RFC2833, SIP INFO
Audio Output Power	15W
Material	ABS
Color	Off White & Black
Power Supply	DC 12V / 24V or PoE
Operating Temperature	0°C to 50°C
Storage Temperature	−20°C to 85°C
Dimensions (L × W × H)	208mm × 208mm × 148mm
Net Weight	870g

Features
Audio Performance
- 15W Output Power – High-definition, loud audio for wide-area coverage
- 48K OPUS Codec – Crystal-clear and low-latency HD audio
- Pre-Recorded Playback – Supports scheduled or emergency announcements
- Event-Triggered Alerts – Alarm input for real-time notifications
Integration & Protocols
- Supports ONVIF and HTTP API
- Easy integration with various security and PA systems
- Ideal for public address and emergency communication platforms
Power & Installation
- SC15 model available in adapter-powered and PoE-powered versions
- Flexible installation for different site needs
Design & Durability
- Compact & Rugged Design – Easy to mount and operate
- IP55-Rated Enclosure – Weatherproof for indoor and outdoor use
- Ideal for schools, transport hubs, factories, and public venues
