AKOM IP Wall Mount ABS Speaker | Network PA Audio Solution

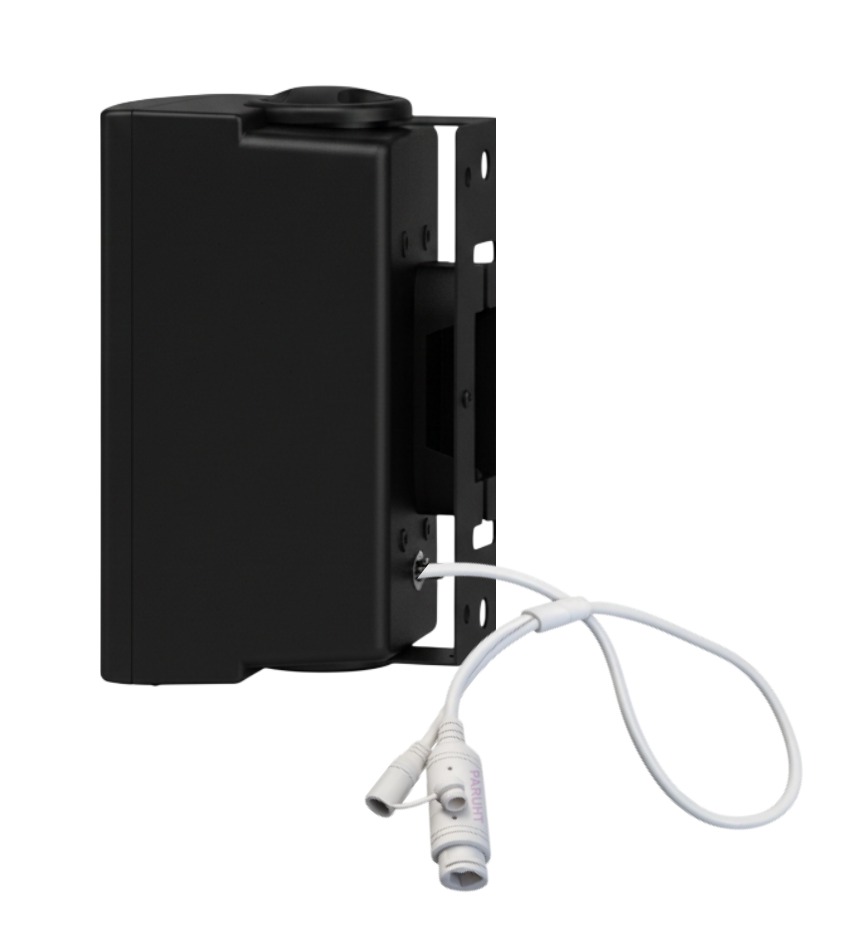

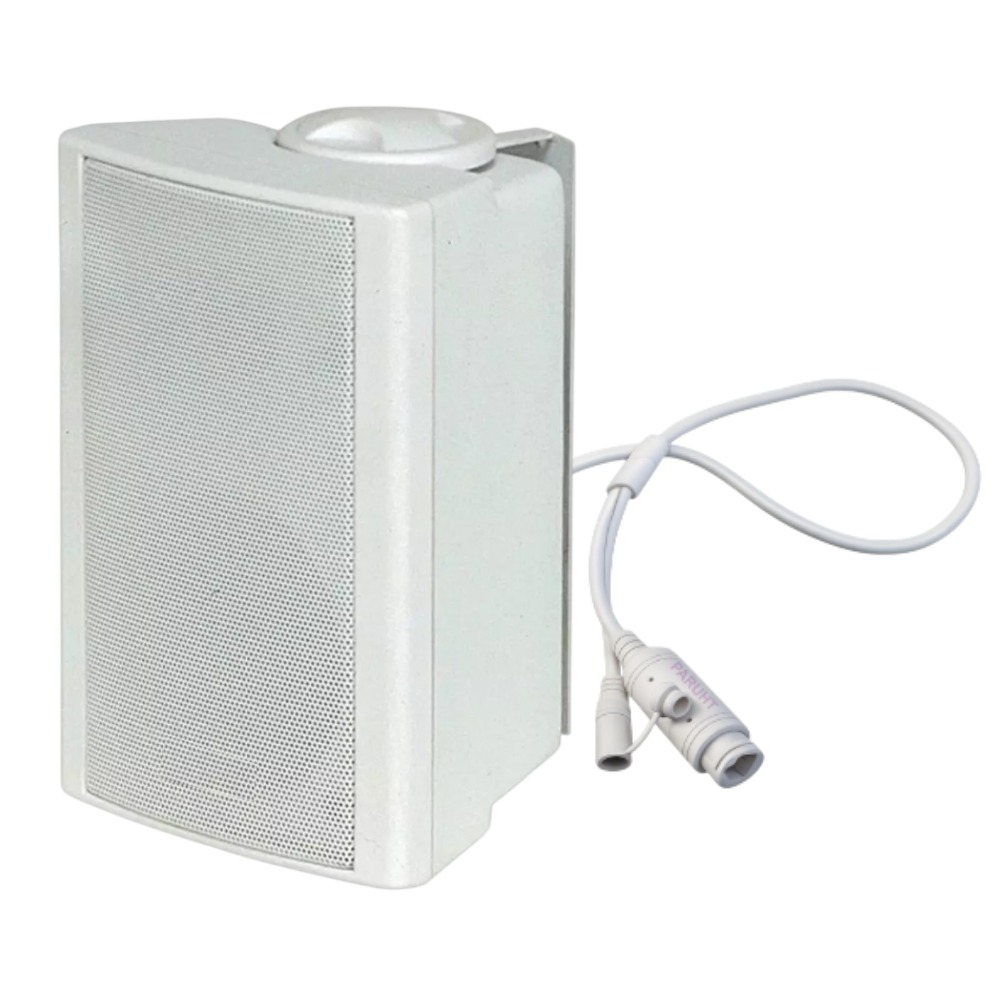

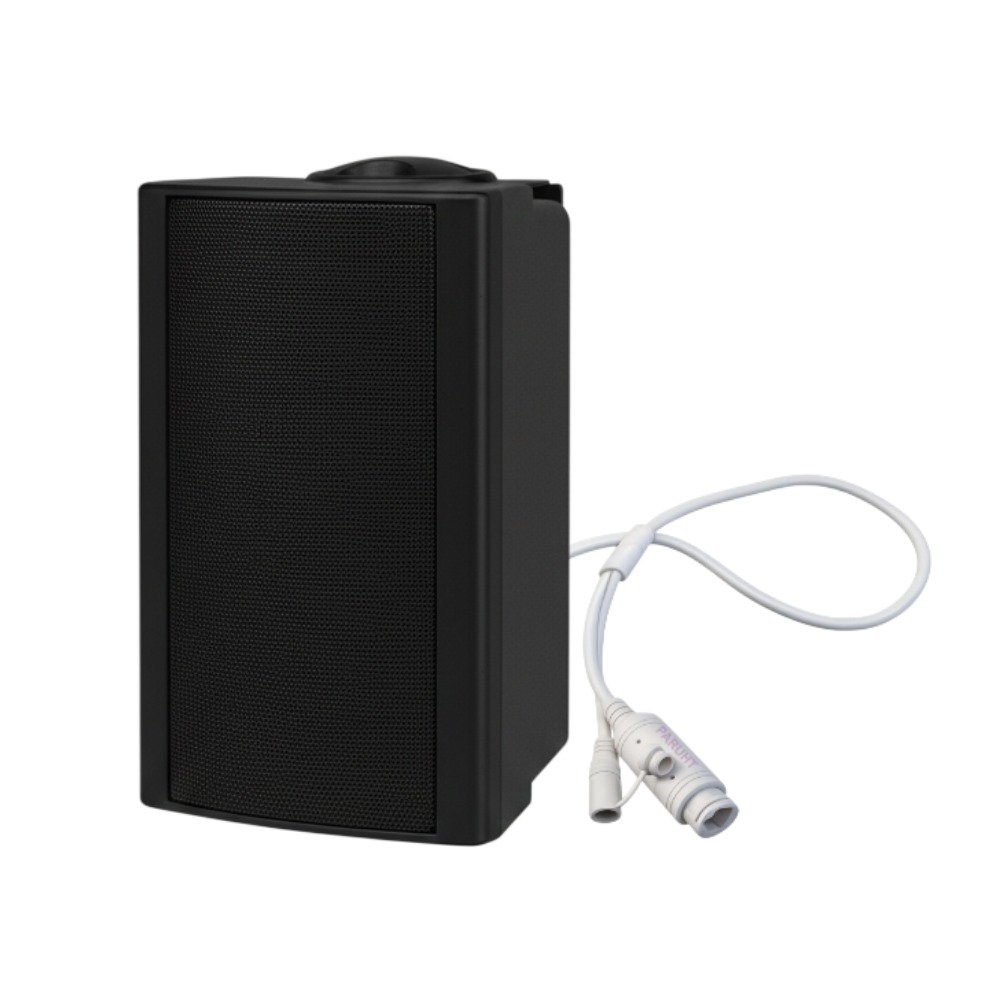

IP Wall Mount Speaker (SW15-ABS)

15W Output Power – Provides loud and clear audio suitable for wide-area coverage.

Seamless System Integration – Compatible with SIP, ONVIF, and HTTP API for easy connectivity.

Event-Triggered Alerts – Alarm input allows real-time automated audio notifications.

Pre-Recorded Message Playback – Supports scheduled or emergency announcements.

Compact & Rugged Design – Weather-resistant (IP55) and ideal for both indoor and outdoor use in schools, factories, and public venues.

Request a Quote

Specifications

IP Speaker SW15-ABS/SW15P-ABS is a compact yet powerful 15W IP speaker designed for high-definition audio in public address and emergency communication systems. It supports SIP, ONVIF, and HTTP API protocols, enabling seamless integration with various security and communication platforms. Available in two versions—SW15-ABS (adapter-powered) and SW15P-ABS (PoE-powered)—it provides flexible installation options. Its durable IP55-rated enclosure ensures reliable performance in both indoor and outdoor environments. Key features include alarm input for event-triggered alerts, pre recorded message playback for automated announcements, and the 48K OPUS codec, which delivers crystal-clear, low-latency audio, making it ideal for schools, transport hubs, industrial sites, and commercial facilities.

SW15-ABS/SW15P-ABS Specifications
Max SIP Account	2
Function	Compatible with VoIP devices and ONVIF VMS, support two-way communication, pre-recorded messages, schedule play, GPIO in, HTTP control
Protocol	SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Network Interface	RJ45, 10BASE-T/100BASE-TX
Codec	OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
DTMF	In-band, RFC2833, SIP INFO
Audio Output	15W
Material	ABS
Color	White & Black
Power	DC 12V/24V or POE
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 85°C
Dimension	167mm * 142mm * 232mm
Net Weight	870g

Features
Audio Performance
- 15W Output Power – High-definition, loud audio for wide-area coverage
- 48K OPUS Codec – Crystal-clear and low-latency HD audio
- Pre-Recorded Playback – Supports scheduled or emergency announcements
- Event-Triggered Alerts – Alarm input for real-time notifications
Integration & Protocols
- Supports SIP, ONVIF, and HTTP API
- Easy integration with various security and PA systems
- Ideal for public address and emergency communication platforms
Power & Installation
- SW15-ABS – Adapter-powered version
- SW15P-ABS – PoE-powered version
- Flexible installation for different site needs
Design & Durability
- Compact & Rugged Design – Easy to mount and operate
- IP55-Rated Enclosure – Weatherproof for indoor and outdoor use
- Ideal for schools, transport hubs, factories, and public venues
Download Brochure
PDF Manual
- IP Speaker SW15-ABS/SW15P-ABS Datasheet
