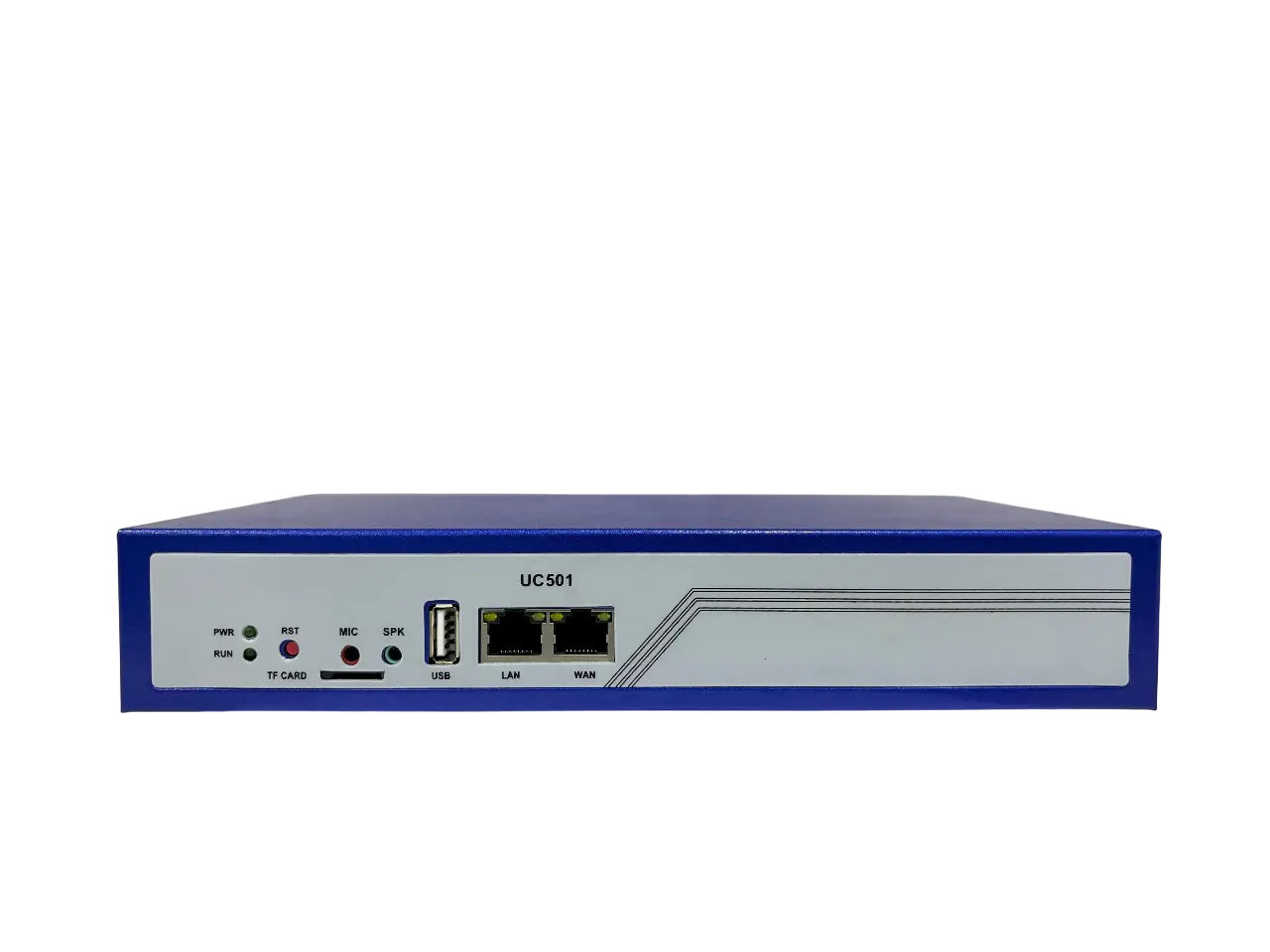

UC 501 IP PBX

Specifications
UC501 IPPBX is an upgraded version of UC500. It can be pre-installed with IPPBX system or other open-source communication system chosen by customers. It has built-in Uninterruptible Power Supply(UPS) and full PBX functions to meet different usage scenarios.

The UC501 is equipped with up to 8 analog ports and 2 Ethernet interfaces for seamlessly integrating VoIP trunks and your existing PSTN lines. In addition, UC501 supports a wide selection of codecs and signaling protocols, including G711 (alaw/ulaw), G722, OPUS, AMR-NB/WB, SILK, G723.1 G726, G729, GSM, ADPCM, iLBC, H263, H263P, H264 , VP8. Taking full advantages of open source platform, the UC Series appliances support industry standard SIP trunks, IAX2 trunks, analog PSTN trunks, and analog station trunks.

In addition, the UC501 is modular in design, equipped with 2FXO/2FXS/1FXO&1FXS modules, and with a detachable chassis, users can easily change the port type or expand the system.
Technical Specification
- Up to 800 extension register
- 150 concurrent calls
- Recording: 86,000 mins (.gsm); 9,500 mins (.wav)
- Voicemail: 86,000 mins (.gsm); 9,500 mins (.wav)
- Network Interface: 1*10/100M LAN port，1*10/100M WAN port
- USB Port: 1×USB 2.0 for external storage or disaster recovery system
- External Storage: 1×SD slot, support up to 128G
- Telephony Interfaces: FXS/FXO interface, Optional
- Storage: 16GB Onboard Flash
- RAM: DDR3 1GB
- 1 MIC Interface: Audio Input
- 1 SPK Interface: Audio Output
- Power Consumption: 12V/1.3A,16W Maximum
- Operational Temperature: 0°C to 50 °C
- Storage Temperature: -20 °C to 65 °C
- Size: 250*147*44mm
- Weight: 858g
Certifications
- RoHS Compliant
- Certificates: CE and FCC
Internet
- DHCP Server
- DHCP Client List
- Assign IP Address to Host
Security
- Firewall
- Audit
- Weak keys
Combination

Users can choose two module accessories to customize.
- FXO-200+FXO-200
- FXO-200+FXS-200
- FXS-200+FXS-200
Software & Platform:
- Linux OS
Features
PBX
- Import/Export Extensions
- Call Transfer
- Follow-Me/Ring Group/Queue
- Quickly Auto Provision IP Phones
- Support IMS
- Flexible Inbound/Outbound Route
- Blacklist
- AutoCLIP
- Time Condition
- PIN List
- Automated Attendant (IVR)
- Phonebook
- LDAP Service
- Wakeup Service
- DISA (Direct Inward System Access)
- Conference
- Call Back
- Call Parking
- Paging and Intercom
- Speed Dial
- Call Recording
- Music On Hold
- Support Open API Protocol (based on Asterisk)
- Click2call
- Support WebRTC
- Access Control Interface based on ACL
- AI TTS
- SIP Instant Messaging
Report
- Call Detail Records (CDR)
- Billing Report
General
- Up to 8 FXS/FXO (PSTN/POTS) Analog Port
- Support SIP & IAX2
- Abundant HD voice codecs: OPUS, AMR-NB/WB, G.722, SILK and VP8
- HD Video Calls
- Echo Canceller
System
- Simple and Convenient Configuration via Web GUI
- User Portal
- Extension User Privileges
- System Administrators Monitor
- Event Notification
- Support Backup/Restore
- Remote Management
- Hot Standby
Network
- Network configuration
- Support Static Route
- Support Fail2ban
- Secure SIP calling (TLS encryption)
- Support Multiple VPN protocols including OpenVPN, L2TP, N2N, SSTP（Not available for EAEU）
Email
- Voicemail
- Missed Calls Notification
- Email Server
- Antispam support
- Support Mail Relay
- Fax to Email
Download Brochure
PDF Manual
- UC501 IPPBX Datasheet
