AK822FGS 8 Port PoE Network Switch | 150W PoE Switch with Gigabit Ports

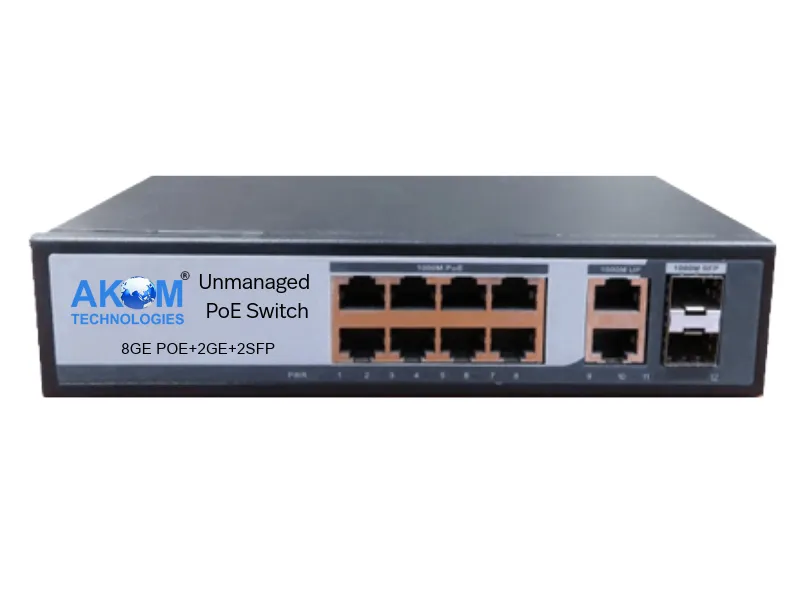

8 Port PoE Network Switch AK822FGS

PoE Ports – 8×1000Mbps PoE ports with IEEE802.3af/at support.

Power – 30W per port with 150W total PoE output.

Ports – 2×1000Mbps Ethernet ports + 2 SFP slots.

Distance – Supports PoE transmission up to 100m.

Features – Store-and-forward & storm control.

Design – Fanless design with 4KV lightning protection.

Request a Quote

Specifications

8 Port PoE Network Switch AK822FGS is a reliable unmanaged PoE switch designed for power and data transmission through a single Ethernet cable. It features 8×1000Mbps PoE ports with IEEE802.3af/at support, delivering up to 30W power per port and 150W total PoE output. The switch includes 2×1000Mbps Ethernet ports and 2 SFP slots for high-speed network expansion. With store-and-forward architecture, network storm control, MDI/MDIX support, and 100m PoE transmission distance, it provides stable network performance. Its fanless natural cooling design, compact desktop/wall mount structure, built-in power supply, and 4KV lightning protection make it suitable for IP cameras, VoIP phones, access points, and other PoE-enabled network devices.

AK822FGS PoE Network Switch
Model	AK822FGS
Power Adapter Voltage	AC 110V-240V
Consumption	150W (52V 2.88A)
PoE Ethernet Port	8×1000Mbps PoE Ports
Ethernet Port, SFP Port	2×1000Mbps Uplink Ports + 2×SFP Slots
Transmission Distance	PoE Port: 0-100m / Uplink: 0-100m
Transmission Medium	Cat5/Cat5e/Cat6 Standard Network Cable
Network Standard	IEEE802.3 / IEEE802.3u / IEEE802.3x / IEEE802.3ab
Switching Capacity	20Gbps
Packet Buffer Memory	1Mbits
Throughput	14.88Mbps
MAC Table	2K
Packet Forwarding Rate	10Mbps:14880pps/port, 100Mbps:148000pps/port, 1000Mbps:1488000pps/port
PoE Standard	IEEE802.3af/at
PoE Power Supply	1/2(+), 4/5(+), 3/6(-), 7/8(-)
PoE Power	af:15.4W / at:30W per Port
Port Function	Power Priority, Fast Forward, MAC Learning & Aging, Full Duplex
LED Indicator	Power Indicator & Network Data Indicator
Working Temperature	0°C ~ 55°C
Storage Temperature	-20°C ~ 70°C
Relative Humidity	20% ~ 95%
Dimension	220mm × 140mm × 45mm
Color & Weight	Black / 2.5Kg

Features
PoE Performance
- 8×1000Mbps PoE ports
- IEEE802.3af/at support with 30W per port
- 150W total PoE power output
- 100m long distance PoE transmission
Network Function
- Supports IEEE802.3 / 802.3u / 802.3x / 802.3ab
- Store-and-forward switching architecture
- MAC automatic learning and aging
- Network storm control support
Expansion & Design
- 2×1000Mbps uplink ports + 2 SFP slots
- Supports Cat5/Cat5e/Cat6 cable
- 20Gbps switching capacity
- Compact desktop/wall mount design
Protection & Reliability
- 4KV lightning protection support
- LED indicators for Power and Network status
- Fanless natural cooling operation
- Ideal for IP cameras, VoIP phones, access points and PoE devices
Download Brochure
PDF Manual
- 8 Port PoE Network Switch AK822FGS Datasheet
