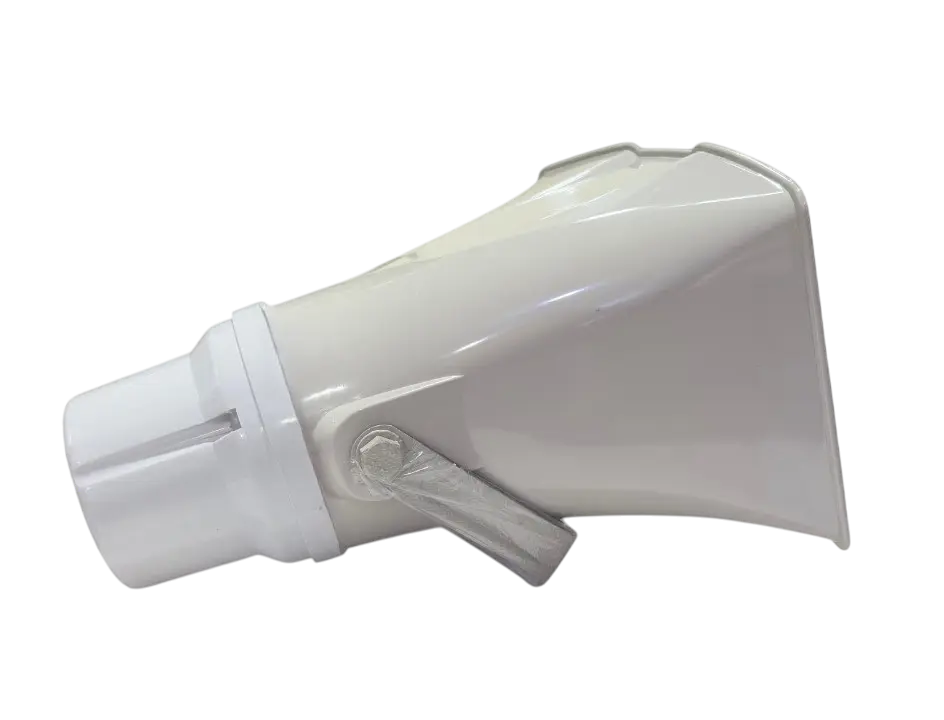

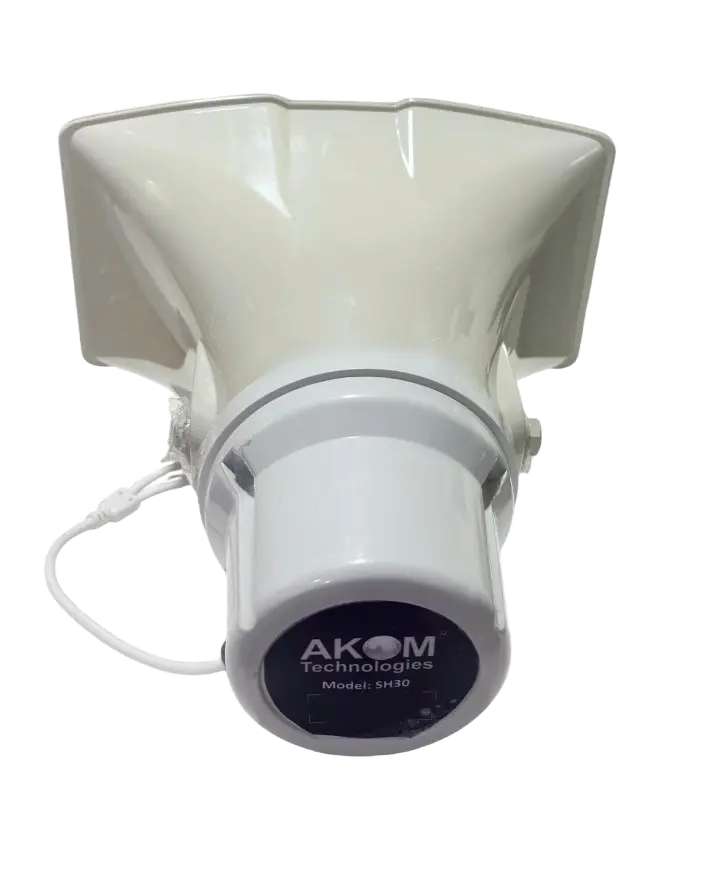

IP Horn Speaker SH-30

Specifications

The SH-30 IP Horn Speaker is a compact 15W network speaker designed for clear, high-quality audio in outdoor and semi-outdoor environments. Supporting SIP, ONVIF, and HTTP API, it integrates easily with IP-based systems. With PoE support, IP65 waterproof housing, and features like alarm input, pre-recorded playback, and 48K OPUS codec, the SH-15 is ideal for announcements and emergency alerts in schools, factories, transport hubs, and commercial facilities.

SH-30 Specifications
Max SIP Account	2
Function	Compatible with VoIP devices and ONVIF VMS, support two-way communication, pre-recorded messages, schedule play, GPIO in, HTTP control
Protocol	SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Network Interface	RJ45, 10BASE-T/100BASE-TX
Codec	OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
DTMF	In-band, RFC2833, SIP INFO
Audio Output	30W
Material	ABS
Color	Off White
Power	DC 12V/24V or POE
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 85°C
Dimension	167mm * 142mm * 232mm
Net Weight	1.9 Kg Approx

Features
Audio Performance
- 30W Output Power – Delivers loud, high-definition audio for small to medium coverage areas
- 48K OPUS Codec – Ensures crystal-clear, low-latency HD audio transmission
- Pre-Recorded Playback – Allows automated or emergency message announcements
- Event-Triggered Alerts – Built-in alarm input enables real-time notifications
Integration & Protocols
- SIP, ONVIF & HTTP API Support – Seamless compatibility with IP PBX, VMS, and other platforms
- Easy System Integration – Ideal for security, public address, and emergency communication setups
Power & Installation
- PoE-Powered (SH-15) – Simplifies deployment with single-cable power and data
- Flexible Mounting Options – Designed for quick and hassle-free installation
️Design & Durability
- Compact & Robust Design – Engineered for consistent performance and space efficiency
- IP65-Rated Waterproof Housing – Suitable for both indoor and outdoor environments
Recommended Use Cases
- Perfect for factories, industrial sites, campuses, transportation areas, and large public venues
